On the Wire

#!/usr/bin/env python3
"""
SANS Holiday Hack Challenge 2025 – "On the Wire" (1-Wire / dq)

What this script does
---------------------
1) Connects to the dq WebSocket endpoint.
2) Records one complete transmission (from marker "reset" to marker "stop").
3) Saves the raw capture to dq_capture.json for reproducibility in a write-up.
4) Decodes 1-Wire data by measuring LOW pulse widths (timing-based decoding).
5) Prints decoded bytes as HEX + ASCII and extracts the XOR key if present.

Why timing matters
------------------
1-Wire does NOT send bits as a simple sequence of 0/1 voltage levels.
Instead, each bit is encoded by how long the line stays LOW during a time slot.

Important implementation detail for this challenge feed:
- The 'presence' marker is on the FALLING edge of the presence pulse (v=0).
  If you start decoding immediately at that record, you will accidentally treat
  the presence pulse as a data bit and the entire decode will be shifted.
  Therefore, we start decoding AFTER the presence pulse ends (next v==1).

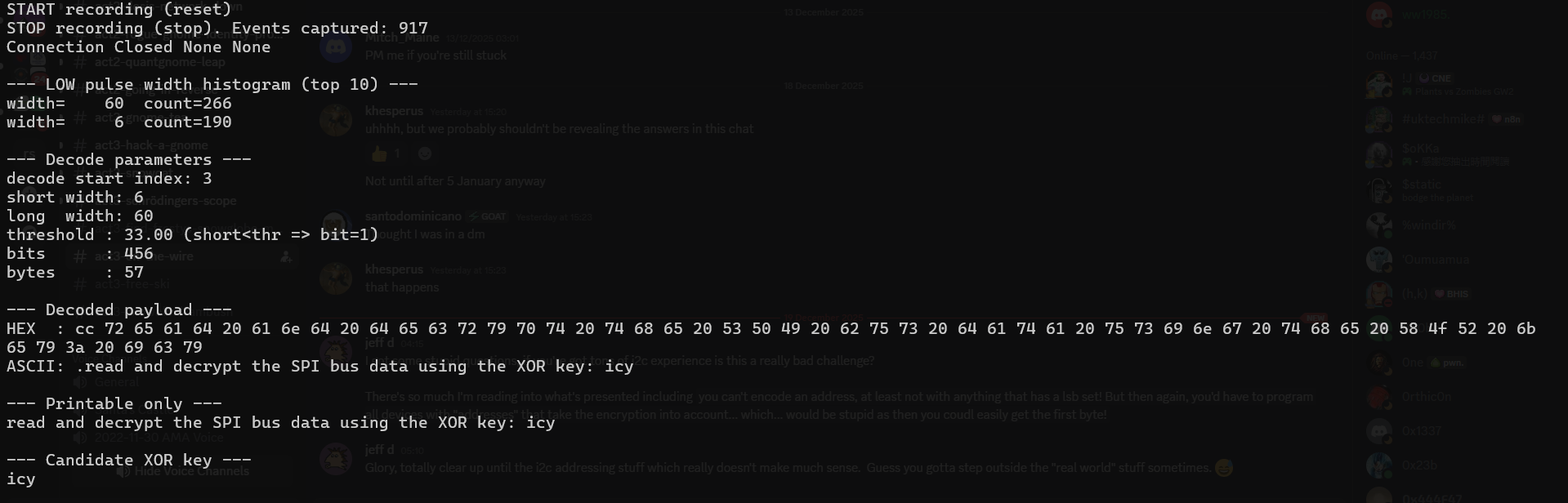

Expected outcome
----------------
The decoded ASCII should include an instruction ending with:
"... XOR key: icy"
"""

import json
import websocket
from collections import Counter

# -----------------------------
# Capture control
# -----------------------------

START_MARKER = "reset"
STOP_MARKER = "stop"

recording = False
recording_done = False
recorded = []  # list of dict frames


def on_message(ws, message: str):
    """Capture frames between START_MARKER and STOP_MARKER."""
    global recording, recording_done, recorded

    if recording_done:
        return

    msg = json.loads(message)
    marker = msg.get("marker")

    # Start recording at reset
    if not recording and marker == START_MARKER:
        recording = True
        recorded = [msg]  # include reset frame
        print("START recording (reset)")
        return

    # Ignore everything until we see the start marker
    if not recording:
        return

    # Recording phase
    recorded.append(msg)

    # Stop recording at stop marker
    if marker == STOP_MARKER:
        print(f"STOP recording (stop). Events captured: {len(recorded)}")
        recording = False
        recording_done = True
        ws.keep_running = False
        ws.close()


def on_error(ws, error):
    print("WebSocket error:", error)


def on_close(ws, close_status_code, close_msg):
    print("Connection Closed", close_status_code, close_msg)


# -----------------------------
# 1-Wire decoding helpers
# -----------------------------

def collapse_levels(frames):
    """
    Collapse consecutive identical levels to obtain a transition list.

    Input : list of frames dicts with keys t, v
    Output: list of (t, v) tuples where v flips each entry
    """
    frames = sorted(frames, key=lambda x: x["t"])
    out = []
    last_v = None
    for f in frames:
        t = f["t"]
        v = int(f["v"])
        if last_v is None or v != last_v:
            out.append((t, v))
            last_v = v
    return out


def extract_low_pulse_widths(transitions):
    """
    Extract LOW pulse widths.

    A LOW pulse is a segment where v==0 followed by v==1.
    Width = t_rise - t_fall
    """
    widths = []
    for i in range(len(transitions) - 1):
        t0, v0 = transitions[i]
        t1, v1 = transitions[i + 1]
        if v0 == 0 and v1 == 1:
            widths.append(t1 - t0)
    return widths


def infer_threshold(widths):
    """
    Infer a threshold separating short and long LOW pulses.

    This challenge feed typically has two dominant widths (e.g. 6 and 60).
    We take the two most common widths and set the threshold midway.
    """
    counts = Counter(widths)
    common = [w for (w, _n) in counts.most_common(5)]
    if len(common) < 2:
        raise ValueError("Not enough distinct pulse widths to infer threshold.")
    w_short = min(common[0], common[1])
    w_long = max(common[0], common[1])
    threshold = (w_short + w_long) / 2.0
    return threshold, w_short, w_long, counts


def bits_to_bytes_lsb(bits):
    """
    1-Wire transmits bits LSB-first within each byte.

    bit0 is sent first, then bit1, ..., bit7.
    """
    out = []
    cur = 0
    pos = 0
    for b in bits:
        cur |= (b & 1) << pos
        pos += 1
        if pos == 8:
            out.append(cur)
            cur = 0
            pos = 0
    return bytes(out)


def hexdump_and_ascii(data: bytes):
    """Return a (hex_string, ascii_string) pair."""
    hx = " ".join(f"{b:02x}" for b in data)
    asc = "".join(chr(b) if 0x20 <= b <= 0x7E else "." for b in data)
    return hx, asc


def find_decode_start_index(frames):
    """
    Start decoding AFTER the presence pulse ends.

    The feed marks:
      presence marker at the FALLING edge (v=0)
    So we must move to the next frame where v==1 after that timestamp,
    otherwise the presence pulse width (e.g. 150) will be misread as a data bit.

    If no presence marker exists, fall back to "reset" and start after it returns high.
    """
    frames = sorted(frames, key=lambda x: x["t"])

    def start_after_marker(marker_name: str):
        for i, f in enumerate(frames):
            if f.get("marker") == marker_name:
                t_mark = f["t"]
                # Find next rising level (v==1) AFTER this marker timestamp
                for j in range(i + 1, len(frames)):
                    if frames[j]["t"] > t_mark and int(frames[j]["v"]) == 1:
                        return j
                return i
        return None

    idx = start_after_marker("presence")
    if idx is not None:
        return idx

    idx = start_after_marker("reset")
    if idx is not None:
        return idx

    return 0


def decode_1wire(frames):
    """
    Full pipeline:
    - Determine correct start index (after presence pulse ends)
    - Collapse levels to transitions
    - Extract LOW widths
    - Infer threshold separating short vs long widths
    - Map short->1, long->0 (standard 1-wire convention)
    - Pack bits LSB-first into bytes
    """
    start_idx = find_decode_start_index(frames)
    subset = frames[start_idx:]

    transitions = collapse_levels(subset)
    widths = extract_low_pulse_widths(transitions)

    threshold, w_short, w_long, counts = infer_threshold(widths)

    # Standard mapping for this challenge stream:
    #   short low pulse => bit 1
    #   long  low pulse => bit 0
    bits = [1 if w < threshold else 0 for w in widths]

    decoded = bits_to_bytes_lsb(bits)

    return decoded, {
        "start_idx": start_idx,
        "counts": counts,
        "threshold": threshold,
        "w_short": w_short,
        "w_long": w_long,
        "num_widths": len(widths),
        "num_bits": len(bits),
        "num_bytes": len(decoded),
    }


def extract_printable(data: bytes) -> str:
    """Extract printable ASCII characters for quick human inspection."""
    return "".join(chr(b) for b in data if 0x20 <= b <= 0x7E)


# -----------------------------
# Main
# -----------------------------

def main():
    endpoint = "wss://signals.holidayhackchallenge.com/wire/dq"
    ws = websocket.WebSocketApp(
        endpoint,
        on_message=on_message,
        on_error=on_error,
        on_close=on_close,
    )

    ws.run_forever()

    # Save raw capture for your write-up
    with open("dq_capture.json", "w", encoding="utf-8") as out:
        json.dump(recorded, out, indent=2)

    decoded, meta = decode_1wire(recorded)

    print("\n--- LOW pulse width histogram (top 10) ---")
    for w, n in meta["counts"].most_common(10):
        print(f"width={w:>6}  count={n}")

    print("\n--- Decode parameters ---")
    print(f"decode start index: {meta['start_idx']}")
    print(f"short width: {meta['w_short']}")
    print(f"long  width: {meta['w_long']}")
    print(f"threshold : {meta['threshold']:.2f} (short<thr => bit=1)")
    print(f"bits      : {meta['num_bits']}")
    print(f"bytes     : {meta['num_bytes']}")

    hx, asc = hexdump_and_ascii(decoded)
    print("\n--- Decoded payload ---")
    print("HEX  :", hx)
    print("ASCII:", asc)

    printable = extract_printable(decoded)
    print("\n--- Printable only ---")
    print(printable)

    # Optional: try to pull a key after "key:"
    if "key:" in printable.lower():
        # Split on last occurrence of ':' to be tolerant of other colons earlier
        candidate = printable.split(":")[-1].strip()
        print("\n--- Candidate XOR key ---")
        print(candidate)


if __name__ == "__main__":
    main()

icy

#!/usr/bin/env python3
"""
SANS Holiday Hack Challenge 2025 – "On the Wire" (SPI stage, LIVE)
==================================================================

Goal
----
Capture the LIVE SPI signals from the WebSocket "wires" and decode the byte stream.
Then XOR-decrypt it using the key recovered from the 1-Wire stage (key: "icy").

Why brute force is necessary here
---------------------------------
SPI decoding depends on:
  - Which clock edge you sample on (rising vs falling) -> CPHA/Mode issues
  - Bit order within each byte (MSB-first vs LSB-first)
  - Byte alignment (you might start sampling 1–7 bits too early/late)

If any of these are wrong, XOR output may look like printable garbage
("text-like", but no real words). The fastest way to recover is to brute force:
  - edge ∈ {rising, falling}
  - bit_order ∈ {msb, lsb}
  - bit_shift ∈ {0..7}  (re-align byte boundaries)

This script:
  1) Connects to /wire/sck and /wire/mosi
  2) Captures one broadcast loop (detected by MOSI timestamp wrap-around t dropping)
  3) Decodes using the brute-force matrix above
  4) Ranks candidates by a simple plaintext-likeness score
  5) Prints top candidates and full hexdump for the best candidate

Reproducibility
---------------
- The script saves the raw samples to spi_sck_live.json and spi_mosi_live.json.
"""

from __future__ import annotations

import json
import threading
import time
from collections import defaultdict
from dataclasses import dataclass
from pathlib import Path
from typing import List, Optional, Tuple

import websocket


# -----------------------------
# Endpoints
# -----------------------------
SCK_ENDPOINT  = "wss://signals.holidayhackchallenge.com/wire/sck"
MOSI_ENDPOINT = "wss://signals.holidayhackchallenge.com/wire/mosi"

# XOR key from 1-Wire stage
XOR_KEY = b"icy"

# -----------------------------
# Capture stop conditions
# -----------------------------
MAX_CAPTURE_SECONDS = 20.0   # safety cap
POST_WRAP_GRACE_MS = 150     # let a little extra data arrive after wrap detected


# -----------------------------
# Data structures
# -----------------------------
@dataclass(frozen=True)
class Event:
    t: int
    v: int
    marker: Optional[str] = None


lock = threading.Lock()

wire_frames = defaultdict(list)  # wire_frames["sck"] = [Event...], ["mosi"] = [Event...]

done = False
wrap_detected = False
wrap_wallclock_time: Optional[float] = None

mosi_last_t: Optional[int] = None
mosi_saw_advance = False

last_any_message_time = time.time()


# -----------------------------
# Waveform helpers
# -----------------------------
def collapse_levels(events: List[Event]) -> List[Tuple[int, int]]:
    """
    Collapse consecutive identical v values to obtain transitions (t, v).
    """
    events = sorted(events, key=lambda e: e.t)
    out: List[Tuple[int, int]] = []
    last_v: Optional[int] = None
    for e in events:
        if last_v is None or e.v != last_v:
            out.append((e.t, e.v))
            last_v = e.v
    return out


def extract_edges(clock_transitions: List[Tuple[int, int]], edge: str) -> List[int]:
    """
    Extract timestamps of clock edges (rising or falling) from collapsed transitions.
    """
    times: List[int] = []
    for i in range(1, len(clock_transitions)):
        t_prev, v_prev = clock_transitions[i - 1]
        t_now, v_now   = clock_transitions[i]
        if edge == "rising" and v_prev == 0 and v_now == 1:
            times.append(t_now)
        elif edge == "falling" and v_prev == 1 and v_now == 0:
            times.append(t_now)
    return times


def sample_level_at(transitions: List[Tuple[int, int]], t_edge: int) -> int:
    """
    Return the line level at time t_edge given transitions [(t, v), ...].
    Linear scan is fine for the challenge capture sizes.
    """
    if not transitions:
        return 0
    cur = transitions[0][1]
    for t, v in transitions:
        if t > t_edge:
            break
        cur = v
    return cur


def bits_to_bytes(bits: List[int], bit_order: str) -> bytes:
    """
    Pack bits into bytes.
      - msb: b = (b<<1) | bit
      - lsb: b |= bit << position
    """
    out = bytearray()
    n = len(bits) - (len(bits) % 8)

    if bit_order == "msb":
        for i in range(0, n, 8):
            b = 0
            for bit in bits[i:i+8]:
                b = (b << 1) | (bit & 1)
            out.append(b)

    elif bit_order == "lsb":
        for i in range(0, n, 8):
            b = 0
            for pos, bit in enumerate(bits[i:i+8]):
                b |= (bit & 1) << pos
            out.append(b)
    else:
        raise ValueError("bit_order must be 'msb' or 'lsb'")

    return bytes(out)


def xor_repeat(data: bytes, key: bytes) -> bytes:
    """
    XOR with a repeating key (same operation for encrypt/decrypt).
    """
    return bytes(b ^ key[i % len(key)] for i, b in enumerate(data))


def hexdump_ascii(data: bytes, width: int = 16) -> str:
    """
    Hex + ASCII dump for write-ups.
    """
    def p(x: int) -> str:
        return chr(x) if 0x20 <= x <= 0x7E else "."
    lines = []
    for i in range(0, len(data), width):
        chunk = data[i:i+width]
        hexpart = " ".join(f"{b:02x}" for b in chunk)
        asciipart = "".join(p(b) for b in chunk)
        lines.append(f"{i:04x}  {hexpart:<{width*3}}  {asciipart}")
    return "\n".join(lines)


# -----------------------------
# Brute-force SPI decode scoring
# -----------------------------
def shift_bits(bits: List[int], shift: int) -> List[int]:
    """
    Drop the first 'shift' bits to realign byte boundaries.
    shift is 0..7.
    """
    if shift <= 0:
        return bits
    if shift >= len(bits):
        return []
    return bits[shift:]


def score_plaintext(data: bytes) -> float:
    """
    Heuristic scoring:
    - printable ratio
    - presence of common tokens that appear in HHC hint payloads
    """
    if not data:
        return -1.0

    printable = sum(
        1 for x in data
        if 0x20 <= x <= 0x7E or x in (0x0A, 0x0D, 0x09)
    )
    ratio = printable / len(data)

    s = "".join(chr(x) if 0x20 <= x <= 0x7E else " " for x in data).lower()

    tokens = [
        "key", "xor", "addr", "address", "i2c", "target", "device",
        "use", "decrypt", "payload", "{", "}", ":", "=", "[", "]"
    ]
    hits = sum(1 for t in tokens if t in s)

    # printable ratio dominates; token hits add small bonus
    return ratio + (0.15 * hits)


def try_all_spi_decodes(sck_events: List[Event], mosi_events: List[Event], xor_key: bytes):
    """
    Try combinations:
      - edge: rising/falling
      - bit_order: msb/lsb
      - bit_shift: 0..7

    Returns list of tuples:
      (score, edge, bit_order, shift, raw_bytes, decrypted_bytes)
    sorted by descending score.
    """
    sck_trans = collapse_levels(sck_events)
    mosi_trans = collapse_levels(mosi_events)

    candidates = []
    for edge in ("rising", "falling"):
        edge_times = extract_edges(sck_trans, edge)
        bits = [sample_level_at(mosi_trans, t) for t in edge_times]

        for bit_order in ("msb", "lsb"):
            for shift in range(0, 8):
                bits2 = shift_bits(bits, shift)
                raw = bits_to_bytes(bits2, bit_order)
                dec = xor_repeat(raw, xor_key)
                sc = score_plaintext(dec)
                candidates.append((sc, edge, bit_order, shift, raw, dec))

    candidates.sort(key=lambda x: x[0], reverse=True)
    return candidates


# -----------------------------
# WebSocket callbacks
# -----------------------------
def on_message_sck(ws, message: str):
    global last_any_message_time
    obj = json.loads(message)
    if not isinstance(obj, dict):
        return
    if obj.get("line") != "sck":
        return
    if "t" not in obj or "v" not in obj:
        return

    e = Event(t=int(obj["t"]), v=int(obj["v"]), marker=obj.get("marker"))
    with lock:
        last_any_message_time = time.time()
        wire_frames["sck"].append(e)


def on_message_mosi(ws, message: str):
    global done, wrap_detected, wrap_wallclock_time
    global mosi_last_t, mosi_saw_advance, last_any_message_time

    obj = json.loads(message)
    if not isinstance(obj, dict):
        return
    if obj.get("line") != "mosi":
        return
    if "t" not in obj or "v" not in obj:
        return

    t = int(obj["t"])
    v = int(obj["v"])
    e = Event(t=t, v=v, marker=obj.get("marker"))

    with lock:
        last_any_message_time = time.time()
        wire_frames["mosi"].append(e)

        if mosi_last_t is None:
            mosi_last_t = t
            return

        if t > mosi_last_t:
            mosi_saw_advance = True

        # loop boundary: time drops after we have seen time advance
        if mosi_saw_advance and t < mosi_last_t and not wrap_detected:
            wrap_detected = True
            wrap_wallclock_time = time.time()

        mosi_last_t = t


def on_error(ws, error):
    print("WebSocket error:", error)


def on_close(ws, close_status_code, close_msg):
    # Normal when we stop capture
    pass


# -----------------------------
# Supervisor
# -----------------------------
def supervisor(ws_sck: websocket.WebSocketApp, ws_mosi: websocket.WebSocketApp):
    global done

    started = time.time()
    while True:
        time.sleep(0.05)

        with lock:
            now = time.time()

            # hard cap
            if now - started > MAX_CAPTURE_SECONDS:
                done = True

            # if loop wrap detected, wait a brief grace window then stop
            if wrap_detected and wrap_wallclock_time is not None:
                if (now - wrap_wallclock_time) * 1000.0 >= POST_WRAP_GRACE_MS:
                    done = True

            if done:
                break

    try:
        ws_sck.close()
    except Exception:
        pass
    try:
        ws_mosi.close()
    except Exception:
        pass


def slice_one_loop_by_t_reset(events: List[Event]) -> List[Event]:
    """
    Slice exactly one loop based on the first detected wrap (t decreases).
    Uses the event ordering by t. Works well for the HHC looped streams.
    """
    if not events:
        return events

    ev = sorted(events, key=lambda e: e.t)
    # find first t==0 (common) or a wrap point; prefer t==0 if present
    first0 = next((i for i, e in enumerate(ev) if e.t == 0), None)
    if first0 is None:
        # fallback: find first drop
        for i in range(1, len(ev)):
            if ev[i].t < ev[i-1].t:
                return ev[:i]
        return ev

    # find next t==0 after time advanced
    advanced = False
    for j in range(first0 + 1, len(ev)):
        if ev[j].t != 0:
            advanced = True
            continue
        if advanced and ev[j].t == 0:
            return ev[first0:j]

    return ev[first0:]


# -----------------------------
# Main
# -----------------------------
def main():
    global done

    ws_sck = websocket.WebSocketApp(
        "wss://signals.holidayhackchallenge.com/wire/sck",
        on_message=on_message_sck,
        on_error=on_error,
        on_close=on_close,
    )
    ws_mosi = websocket.WebSocketApp(
        "wss://signals.holidayhackchallenge.com/wire/mosi",
        on_message=on_message_mosi,
        on_error=on_error,
        on_close=on_close,
    )

    t_sck = threading.Thread(target=ws_sck.run_forever, daemon=True)
    t_mosi = threading.Thread(target=ws_mosi.run_forever, daemon=True)
    t_sck.start()
    t_mosi.start()

    sup = threading.Thread(target=supervisor, args=(ws_sck, ws_mosi), daemon=True)
    sup.start()
    sup.join()

    with lock:
        sck_all = list(wire_frames["sck"])
        mosi_all = list(wire_frames["mosi"])

    # Save raw capture for write-up reproducibility
    Path("spi_sck_live.json").write_text(
        "\n".join(json.dumps({"t": e.t, "v": e.v, "marker": e.marker}) for e in sck_all),
        encoding="utf-8",
    )
    Path("spi_mosi_live.json").write_text(
        "\n".join(json.dumps({"t": e.t, "v": e.v, "marker": e.marker}) for e in mosi_all),
        encoding="utf-8",
    )

    if not sck_all or not mosi_all:
        raise SystemExit("Capture failed: missing SCK or MOSI data.")

    # Slice to one loop using MOSI's t-reset behavior
    mosi_loop = slice_one_loop_by_t_reset(mosi_all)

    # Align SCK window roughly to MOSI loop time range
    t_min = min(e.t for e in mosi_loop)
    t_max = max(e.t for e in mosi_loop)
    sck_loop = [e for e in sck_all if t_min <= e.t <= t_max]

    print("\n--- Capture summary ---")
    print(f"MOSI events (all) : {len(mosi_all)}")
    print(f"SCK  events (all) : {len(sck_all)}")
    print(f"MOSI events (loop): {len(mosi_loop)}  t=[{t_min}..{t_max}]")
    print(f"SCK  events (win) : {len(sck_loop)}  t=[{t_min}..{t_max}]")

    # Brute-force decode matrix
    cands = try_all_spi_decodes(sck_loop, mosi_loop, xor_key=XOR_KEY)

    print("\n--- Top SPI decode candidates ---")
    for sc, edge, order, shift, _raw, dec in cands[:8]:
        printable = "".join(chr(b) for b in dec if 0x20 <= b <= 0x7E)
        print(f"\nscore={sc:.3f} edge={edge:7} order={order:3} shift={shift}  bytes={len(dec)}")
        print(printable[:240])

    # Print full dump for the best candidate
    best = cands[0]
    sc, edge, order, shift, raw, dec = best

    print("\n=== BEST CANDIDATE (full dump) ===")
    print(f"score={sc:.3f} edge={edge} bit_order={order} bit_shift={shift}")
    print("\n--- RAW ---")
    print(hexdump_ascii(raw))
    print("\n--- DECRYPTED (XOR key='icy') ---")
    print(hexdump_ascii(dec))

    printable_full = "".join(chr(b) for b in dec if 0x20 <= b <= 0x7E)
    print("\n--- Decrypted printable-only (full) ---")
    print(printable_full)


if __name__ == "__main__":
    main()

read and decrypt the I2C bus data using the XOR key: bananza. the temperature sensor address is 0x3

#!/usr/bin/env python3
"""
SANS HHC 2025 – On the Wire – I2C (LIVE, final)

Known facts:
- Target I²C device (7-bit) = 0x3C
- XOR key = "bananza"
- Expected answer format = xx.xx

Observed bus behavior in your run:
- No READ transactions in this segment (R=0, W=2), so decode WRITE payloads.
- Correct framing is "Mode A" (no ACK bits present in collected address-bit/data-bit stream).
- Decrypted payload for 0x3C contains ASCII temperature (e.g., "32.84").

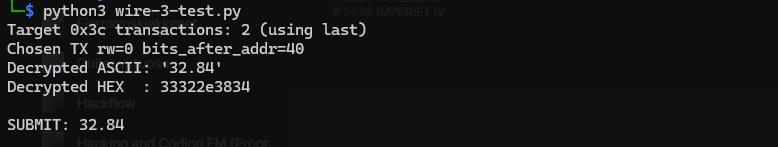

What this script does:
1) Capture one broadcast loop (timestamp wrap) from SDA/SCL
2) Parse I²C transactions using start/stop markers
3) For last transaction to 0x3C:
   - Convert bits->bytes using Mode A (pack every 8 bits)
   - XOR-decrypt with "bananza"
   - If decrypted text matches r"^\\d{2}\\.\\d{2}$", print SUBMIT: xx.xx
   - Otherwise print diagnostics and (optional) fallback interpretations
"""

import json
import re
import threading
import time
from dataclasses import dataclass
from typing import List, Optional

import websocket


SDA_ENDPOINT = "wss://signals.holidayhackchallenge.com/wire/sda"
SCL_ENDPOINT = "wss://signals.holidayhackchallenge.com/wire/scl"

TARGET_ADDRESS = 0x3C
XOR_KEY = b"bananza"

MAX_CAPTURE_SECONDS = 25.0
POST_WRAP_GRACE_MS = 200

RE_ANSWER = re.compile(r"^\d{2}\.\d{2}$")


@dataclass
class BitEvent:
    t: int
    v: int
    marker: Optional[str]


@dataclass
class TxBits:
    address: int
    rw: int
    bits_after_addr: List[int]


lock = threading.Lock()
events: List[BitEvent] = []

wrap_detected = False
wrap_wallclock_time: Optional[float] = None
last_t: Optional[int] = None
saw_advance = False


def xor_decrypt(data: bytes, key: bytes) -> bytes:
    return bytes(b ^ key[i % len(key)] for i, b in enumerate(data))


def assemble_byte_msb(bits8: List[int]) -> int:
    b = 0
    for bit in bits8:
        b = (b << 1) | (bit & 1)
    return b


def bits_to_bytes_mode_a(bits: List[int]) -> bytes:
    """
    Mode A: ACK bits are NOT present in the collected bitstream.
    Pack sequential 8-bit groups.
    """
    out = bytearray()
    n = len(bits) - (len(bits) % 8)
    for i in range(0, n, 8):
        out.append(assemble_byte_msb(bits[i:i+8]))
    return bytes(out)


def parse_i2c_transactions(events_in: List[BitEvent]) -> List[TxBits]:
    """
    START ... STOP framing.
    Collect only address-bit and data-bit values (0/1).
    The first 8 bits after START are the address byte (MSB-first).
    """
    txs: List[TxBits] = []
    in_tx = False
    bits: List[int] = []

    for e in events_in:
        if e.marker == "start":
            in_tx = True
            bits = []
            continue

        if e.marker == "stop":
            if in_tx and len(bits) >= 8:
                addr_byte = assemble_byte_msb(bits[:8])
                address = addr_byte >> 1
                rw = addr_byte & 1
                txs.append(TxBits(address=address, rw=rw, bits_after_addr=bits[8:]))
            in_tx = False
            bits = []
            continue

        if in_tx and e.marker in ("address-bit", "data-bit"):
            bits.append(e.v)

    return txs


def on_message_sda(ws, message: str):
    global wrap_detected, wrap_wallclock_time, last_t, saw_advance
    obj = json.loads(message)
    if not isinstance(obj, dict) or obj.get("line") != "sda":
        return

    t = int(obj.get("t", 0))
    v = int(obj.get("v", 0))
    marker = obj.get("marker")

    with lock:
        events.append(BitEvent(t=t, v=v, marker=marker))

        if last_t is not None:
            if t > last_t:
                saw_advance = True
            elif saw_advance and t < last_t and not wrap_detected:
                wrap_detected = True
                wrap_wallclock_time = time.time()
        last_t = t


def on_message_scl(ws, message: str):
    # Not used; kept to mirror physical bus capture.
    pass


def supervisor(ws_sda, ws_scl):
    start = time.time()
    while True:
        time.sleep(0.05)
        now = time.time()

        if now - start > MAX_CAPTURE_SECONDS:
            break
        if wrap_detected and wrap_wallclock_time is not None:
            if (now - wrap_wallclock_time) * 1000 >= POST_WRAP_GRACE_MS:
                break

    ws_sda.close()
    ws_scl.close()


def main():
    ws_sda = websocket.WebSocketApp(SDA_ENDPOINT, on_message=on_message_sda)
    ws_scl = websocket.WebSocketApp(SCL_ENDPOINT, on_message=on_message_scl)

    t1 = threading.Thread(target=ws_sda.run_forever, daemon=True)
    t2 = threading.Thread(target=ws_scl.run_forever, daemon=True)
    t1.start()
    t2.start()

    supervisor(ws_sda, ws_scl)

    with lock:
        captured = list(events)

    txs = parse_i2c_transactions(captured)
    target = [tx for tx in txs if tx.address == TARGET_ADDRESS]

    if not target:
        print(f"No transactions seen for 0x{TARGET_ADDRESS:02x}")
        return

    chosen = target[-1]  # value write is typically last
    enc = bits_to_bytes_mode_a(chosen.bits_after_addr)
    dec = xor_decrypt(enc, XOR_KEY)

    # Try ASCII first (this challenge returns ASCII temperature)
    try:
        text = dec.decode("ascii", errors="strict")
    except UnicodeDecodeError:
        text = ""

    text = text.strip()

    print(f"Target 0x{TARGET_ADDRESS:02x} transactions: {len(target)} (using last)")
    print(f"Chosen TX rw={chosen.rw} bits_after_addr={len(chosen.bits_after_addr)}")
    print(f"Decrypted ASCII: {repr(text)}")
    print(f"Decrypted HEX  : {dec.hex()}")

    if RE_ANSWER.fullmatch(text):
        print(f"\nSUBMIT: {text}")
        return

    # If not a direct xx.xx string, provide guidance for manual inspection.
    print("\nDecrypted output did not match xx.xx. Inspect the ASCII/HEX above.")
    print("If the value is embedded, search the ASCII for a pattern like \\d\\d\\.\\d\\d.")


if __name__ == "__main__":
    main()

32.84

function xorDecrypt(encrypted, key) {
  let result = "";
  for (let i = 0; i < encrypted.length; i++) {
    const encryptedChar = encrypted.charCodeAt(i);
    const keyChar = key.charCodeAt(i % key.length);  // Key repeats
    result += String.fromCharCode(encryptedChar ^ keyChar);
  }
  return result;
}
